XE100 100W氙燈光源（推薦高校光譜測試、太陽能模擬器進口光源）

關鍵詞：太陽模擬器，日光光源，光譜測試氙燈，紫外可見紅外光源，

100W氙燈，進口氙燈，氙燈光源，光譜測試光源

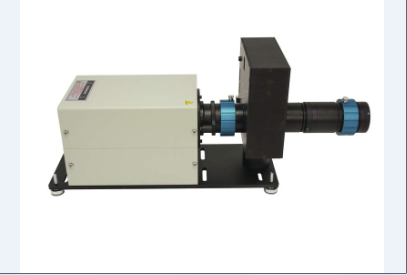

XE100 100W Xe Light Source

100W氙燈光源采用無臭氧氙燈（6002）作為照明光源，氙燈光譜覆蓋紫外、

可見和近紅外，和太陽光譜其近似，廣泛作為太陽能模擬器。因高功率、

寬譜輸出而受吸收和熒光激發等歡迎。光譜范圍260n以上，無臭氧。

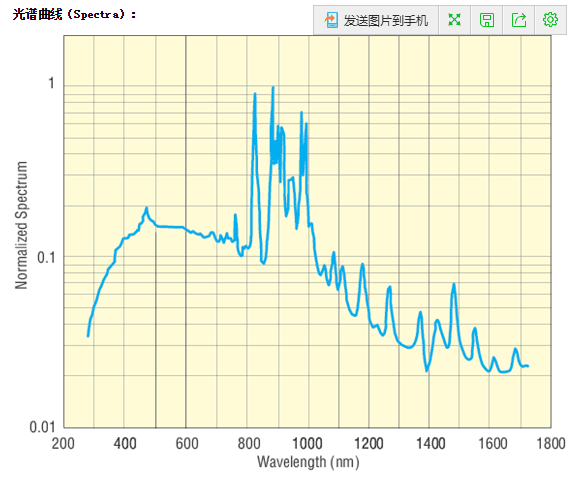

The XE100 uses the 6002 100 W Ozone Free Xe lamp as its

illumination source. Xe arc lamps produce a spectral output

curve that is almost featureless in the UV and NIR regions, with

characteristic Xe lines emitted from 750-1000 nm. Due to their

sun-like emission spectrum, Xe lamps are widely used for solar

simulation applications. Their high intensity, broadband output

also make them popular excitation sources for absorbance and

fluorescence applications. The 6002 is an Ozone Free Xe lamp, useful

for applications that do not require wavelength emission below 260 nm

and features an ellipsoidal reflec

tor to maximize light throughput

throughout the 100 W Xe Light Source.

主要特點：

簡單光學耦合

完全集成、即插即用

光強可調

手動光開關

Features：

Easy Optical Coupling

Fully Integrated, Plug and Play System

Adjustable Lamp Intensity

Manual Shutter

技術參數（Technical Specs）

燈泡類型(Lamp Type)：Xe, Ozone Free

燈泡功率（Lamp Wattage）：100 W

光斑直徑（Output Beam Size）：33 mm

燈泡壽命（Average life）：1000 h

發散角Beam Divergence,：Half Angle4.0 ± 0.5 °

F/#：F/4

透鏡材料（Lens Material）：Fused Silica

光譜范圍（Spectra Range）：260-2500 nm

光波動（Light Ripple）：<0.2 % rms

線性（Line Regulation）：001

輸入（Power Requirements）： 200-240 VAC, 50/60 Hz

濾光片片尺寸（Filter Size）:25.4 mm

濾光片輪（Filter Wheel）：Six Positions (Order Filters Separately)

操作溫度（Operating Temperature）：5 to 40 °C

操作適度（Operating Humidity）：<80% relative humidity (non-condensing)

光學開關

光學開關用于關閉光路，不需要光照時保護使用人員免受紫外線輻射，比如：預熱光源、

安裝光學元件，無需頻繁開關光源。

Manual Shutter

A manual shutter is integrated into the THL100 to allow the user to close off the

light path, blocking any light output from the system. This allows the user to be

protected from UV radiation when light output is not required, such as warming

up the lamp while preparing a setup or making a minor change in setup, without

frequent and unnecessary restarts of the lamp.

六檔濾光片輪

六檔濾光片輪，可以安裝1-6個不同濾光片，直徑25.4mm（1英寸）,便于濾光片。

Integrated Six Position Filter Wheel

A filter wheel is integrated into the assembly of the THL100. Up to six

order-sorting or neutral density filters can added (1.0 in or 25.4 mm diameter,

0.2 in. or 6 mm thickness) and filters can be changed.

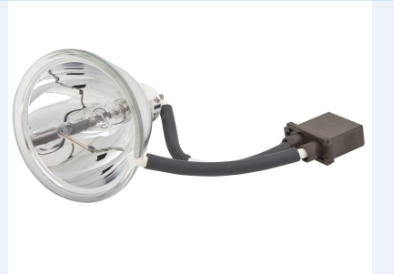

Xenon Arc Lamp, 100 W

100 W氙燈燈泡（6002）

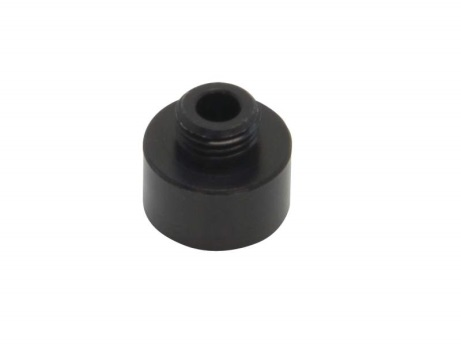

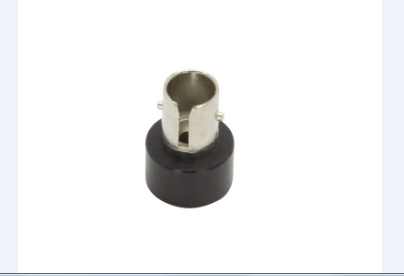

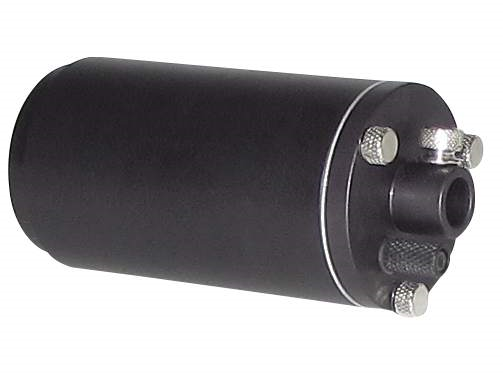

光、光纖耦合接口（Optical Coupling Accessories）

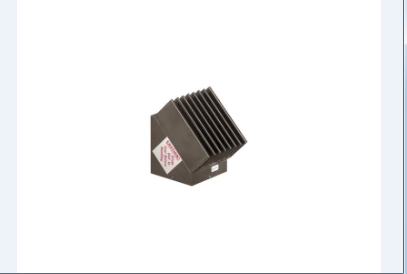

360°光路轉向器

360°旋轉，鍍ALMgF2增反膜，光譜范圍200-2500nm，用于寬譜輸出。

Full Reflector Beam Turning Mirror,

200-20,000 nm

The Full Reflector Beam Turning Mirror is are coated with an AlMgF2

coating optimized to increase reflectivity in the ultraviolet. It is useful

from 200 nm to 30 μm spectral range. Use it when broadband output is needed.
